Electrical design software for low-voltage installations
Cloud software for low-voltage design to AS/NZS 3008: cable sizing, maximum demand, voltage drop, fault loop and protection — with compliance reports.
What they needed
Electricians and electrical engineers in Australia and New Zealand needed to design low-voltage installations to AS/NZS 3008 and AS/NZS 3000 — and to show their working — without installing desktop software.
What we built

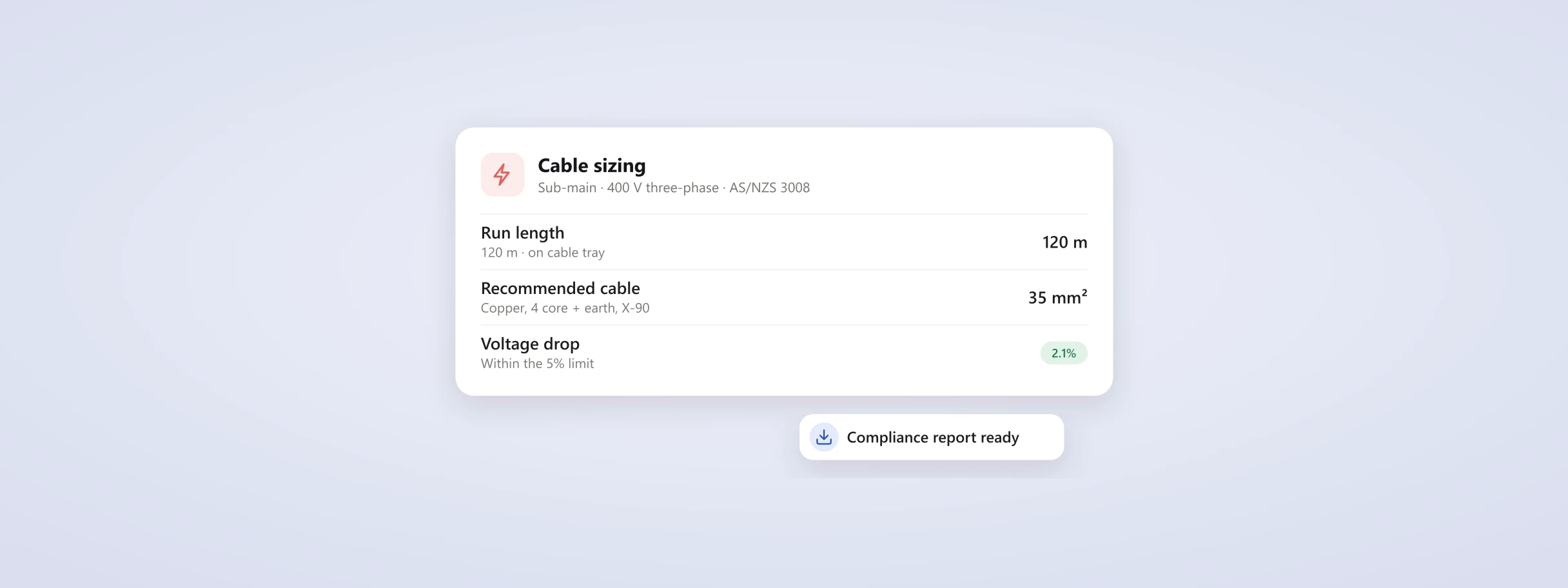

Cable sizing
The smallest compliant active and earth cable chosen automatically, or a chosen size checked.
Maximum demand
Worked out for homes and other buildings, with phases balanced.
Voltage drop and fault loop
Voltage drop and rise for DC, single and three phase, and fault loop checked against the protective device.
Protection coordination
Time-current curves and discrimination checks for breakers and fuses.
Network design
Low-voltage networks from supply to switchboards and loads, on an interactive single-line diagram.
Compliance reports
Branded PDF reports with inputs, results and standard references, and cable schedules to Excel.
